» Installation Guide of Koason Android Screen Display Upgrade Apple CarPlay For Benz E Class W212 S212

Koason Android Screen Display Special for Benz E class W212 S212 (2009-2012) NTG4.0

Koason Android Screen Display Special for Benz E class W212 S212 (2013-2014) NTG4.5/4.7

Koason Android Screen Display Special for Benz E class W212 S212 (2015-2017) NTG45.0/5.1/5.2

for both original factory NGT 4.0 and NGT 4.5 NTG5.0

10.25inch display or 12.3inch screen is optional for LHD (left hand driving cars), RHD (Right hand driving cars)

E200 2012-2016 Year
E250 2011-2016 Year
E300 2009-2016 Year
E350 2009-2016 Year
E400 2013-2016 Year
E500 2009-2016 Year
E550 2009-2016 Year
E63 AMG 2009-2016 Year

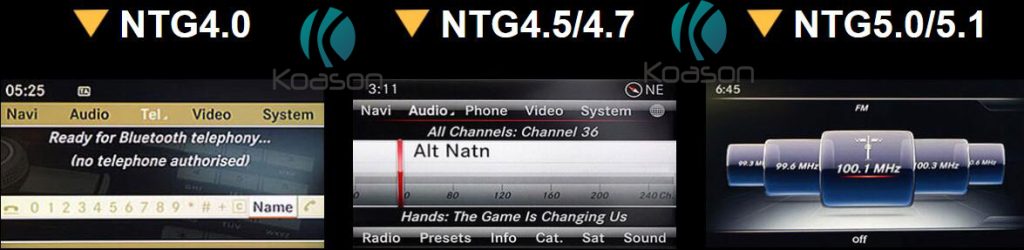

The difference of NTG System is as follows

Please check the system clearly for your car and select it in our shop menu.

The installation process is similar to our other screens, that is plug and play,

no need to cut the wires, no coding, or other operation.

Let's get started!







Installation Steps

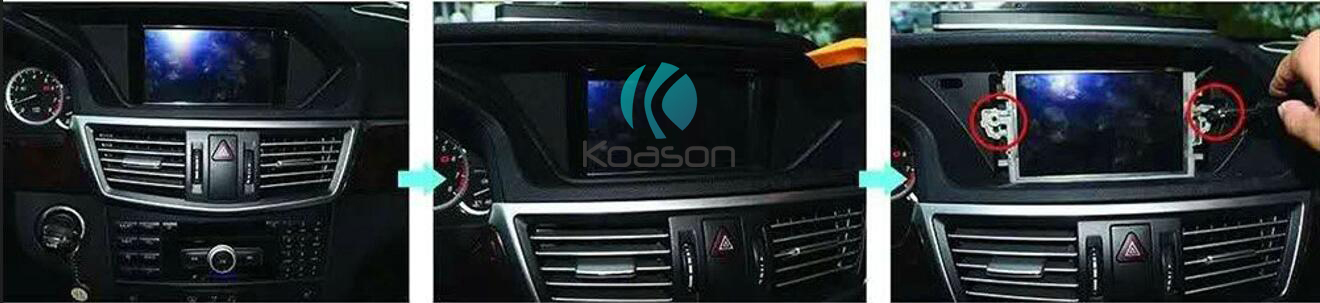

                                                           1.Original car screen              2.Pry out the original carscreen face frame           3.Remove the original screen solid screws

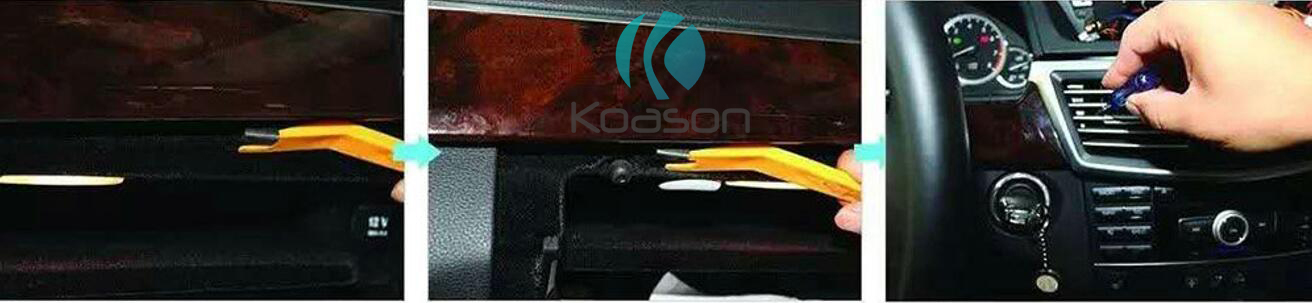

                                                           4.Pry open the outlet panel to fasten the buckle                    5.Hook the inside of the tuyere to the middle.

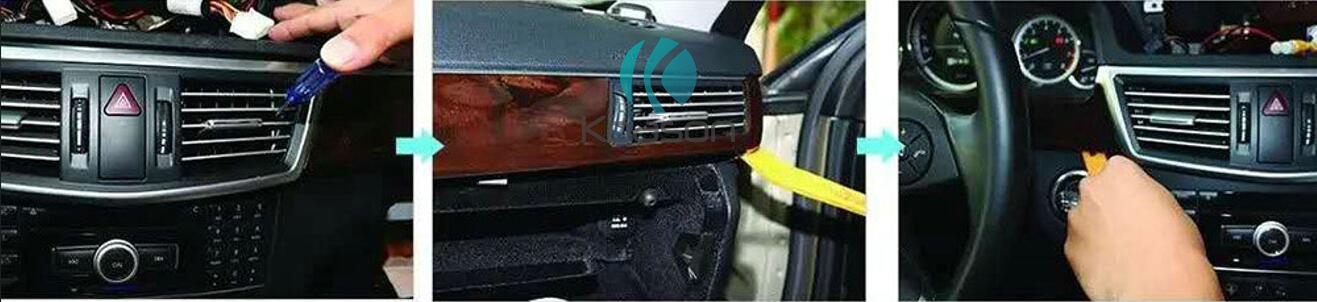

                                                          6.Hook the inside of the tuyere to the middle                  7.Pry Kaiyuan car out tuyere panel

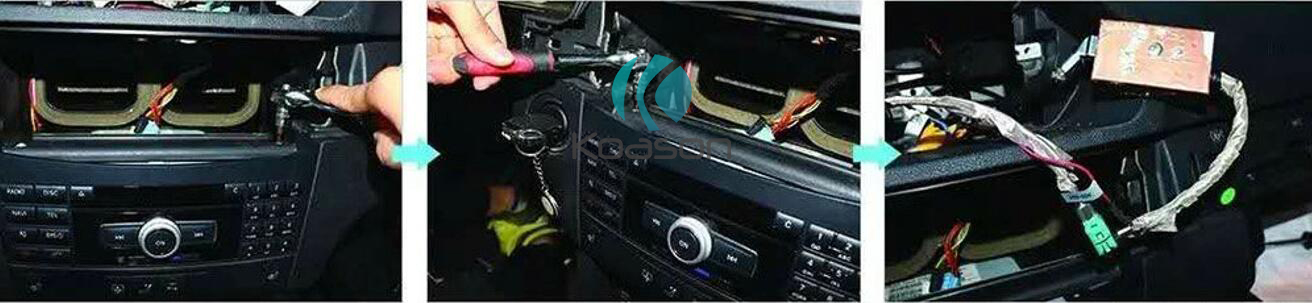

                                                       8.Original car CD fixing screws twist a little                 9.Product Video Transfer box and the original car screen line docking

                                                       Push down and remove the CD host                            Red Power cable Connection product host output power ACCOUT

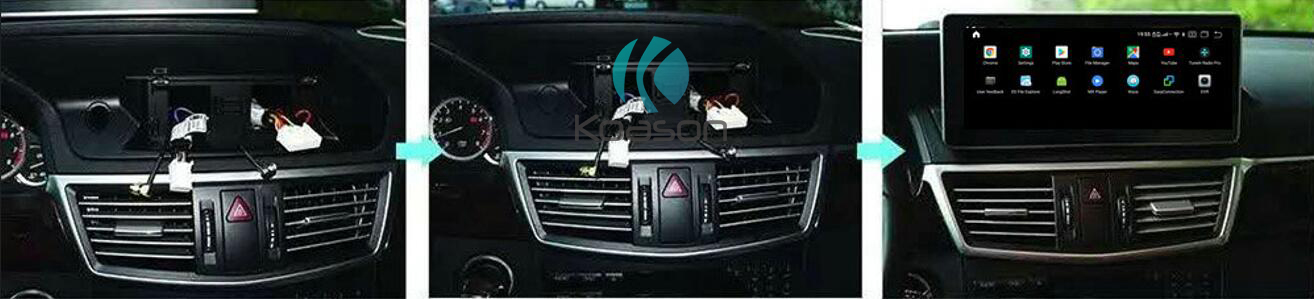

                                                        10.installing a a product-specific           11.Install the product special panel            12. Finished

                                                         framework, fixing screws
