» Installation Guide of Koason Android Screen Display Upgrade Apple CarPlay For Audi A6L

Koason Android Screen Display Special for Audi A6 2005-2011

Audi A6 LHD/RHD（2005-2011）AUDI A6 2005-2009 include MOST.



Please check the system clearly for your car and select it from our shop menu.

The installation process is similar to our other screens, that is plug and play,
no need to cut the wires, no coding, or other operations.

Let's get started!







Installation Steps

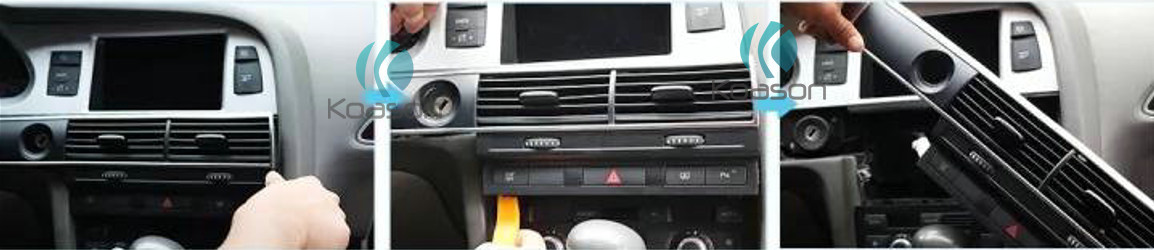

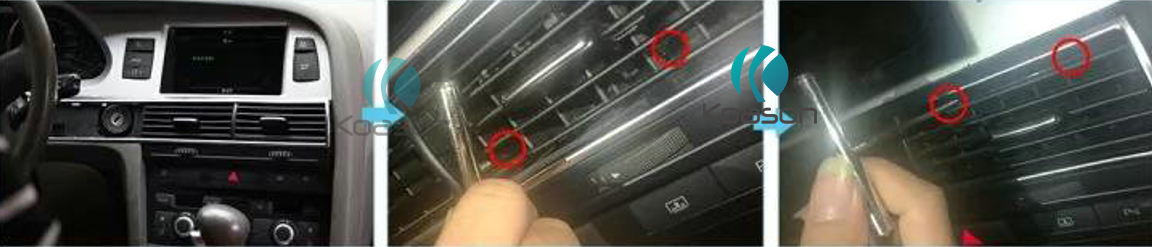

                          1.Original Center Control                                               2. Pry open the original center air vent panel built-in clips



                                                                                                                 4. Pry open the original center air vent panel



                                                                                                                5. Remove the original screen panel screws

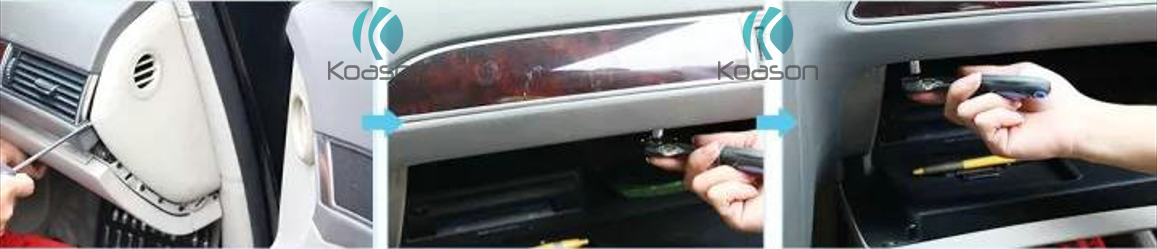

                                                                                            6. Pry open the original glovebox panel                                     7.Remove the glove box screws

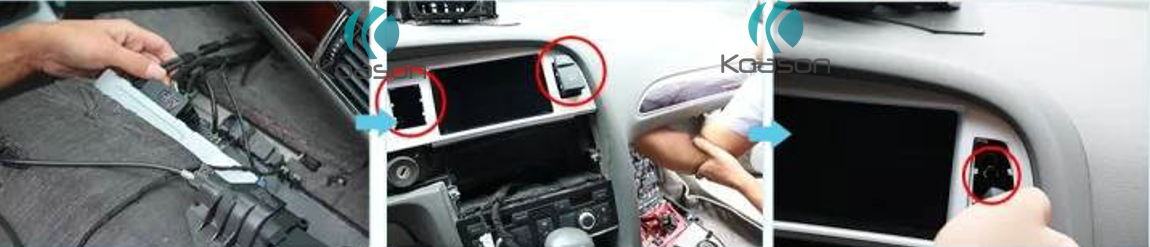

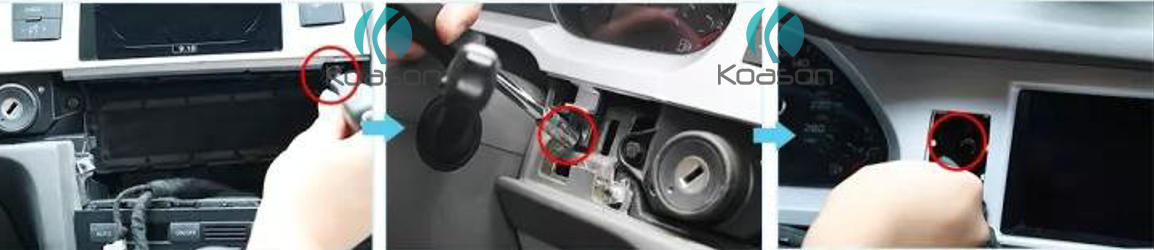

                            8.Unplug the original main unit                            9. Pop the glovebox switch out from the inside        10.Remove the original screen panel screws

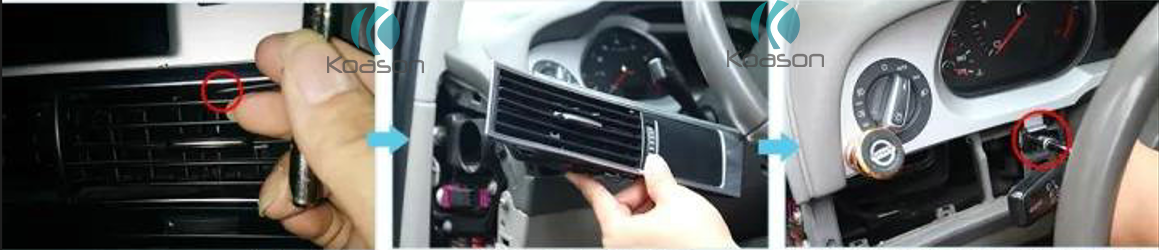

                       11. Pry open the center air vent panel built-in clips       12.Remove the air conditioning panel              13. Remove the screen panel screws

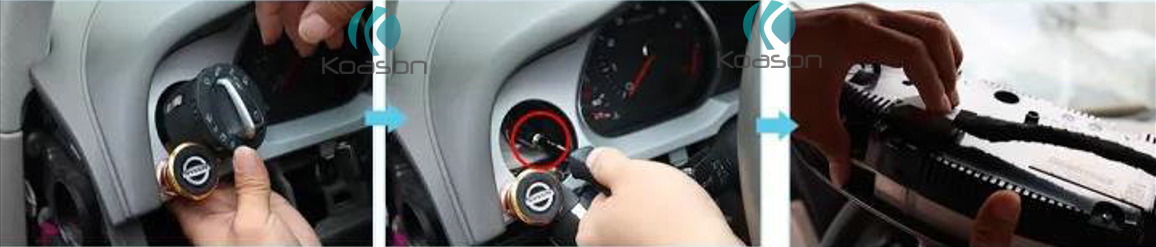

                                                                                  13. Remove the screen panel screws                                14.Remove the original instrument panel and take off the plug



                       14. Remove the screen  screws                                15. Remove the air conditioning panel                    16.Transfer the air conditioning panel protocol line

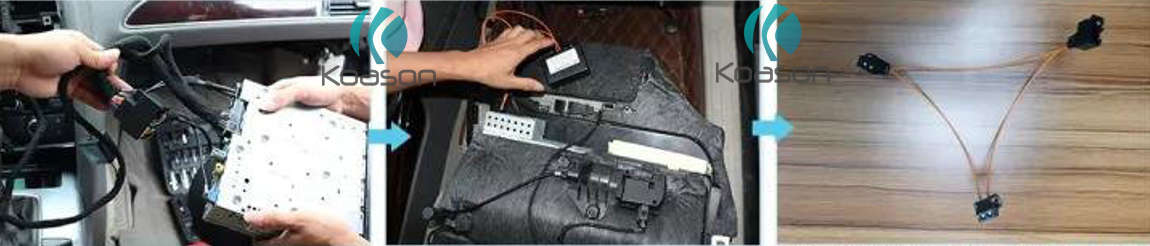

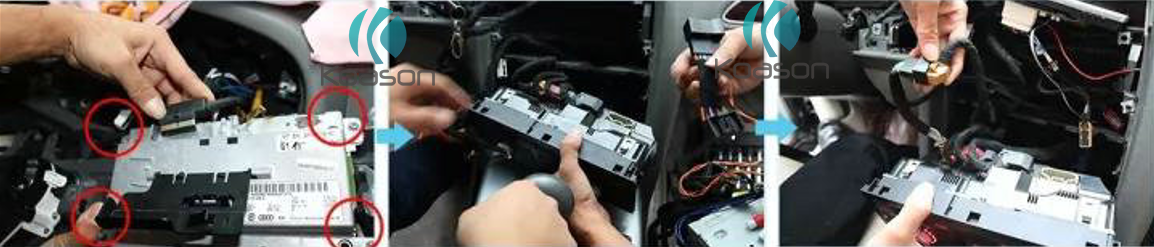

                       17. Pull out the CD player control box                              18. Adapter to CD player control box socket       19. Adapter to original car fibre optic

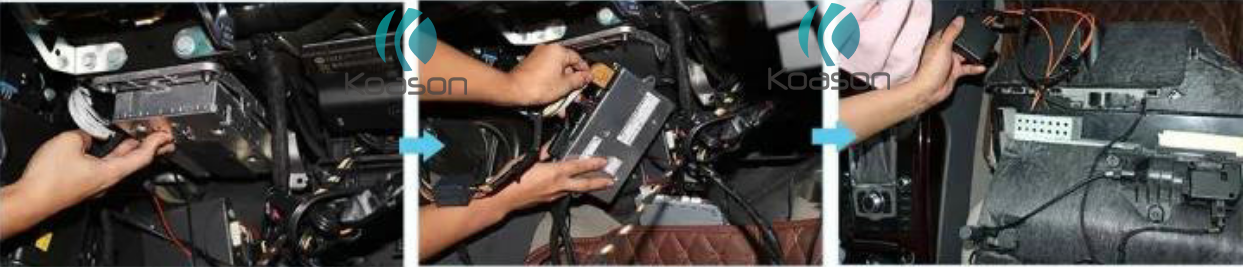

                       20. Original wiring harness and our wiring harness plugging together     21.Fibre optic box placement*        22.Fibre optic cable*

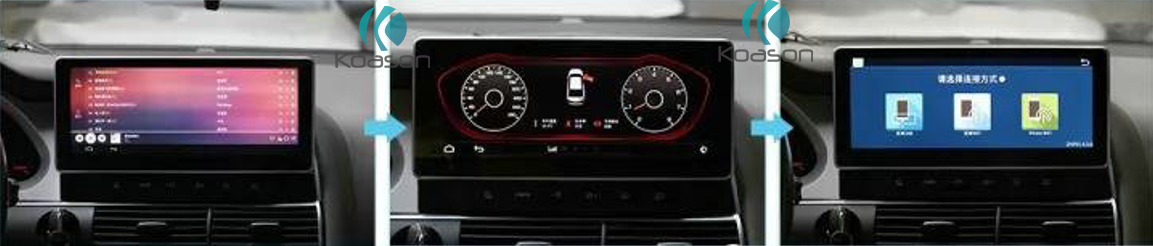

                                                                                                                                 23.  Installation finished





NOTE:

           21. Fibre-optic cable is fragile , do not bend it.
