» Installation Guide of Koason Android Screen Display Upgrade Apple CarPlay For Audi A4L / A5 / Q5

Koason Android Screen Display Special for Audi A4 A5 Q5 (2009-2016)

10.25inch display or 12.3inch screen is optional for LHD (left hand driving cars),
RHD (Right hand driving cars)

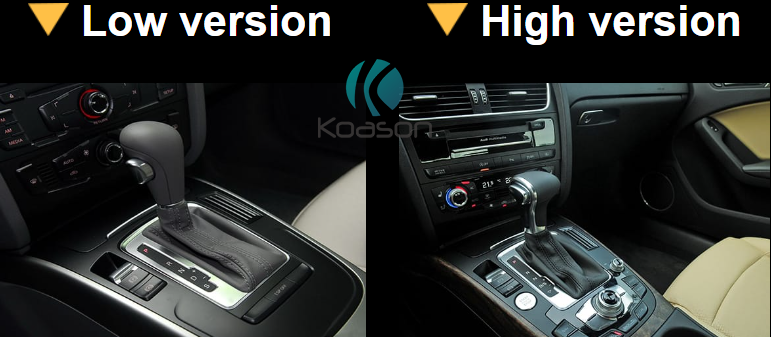

And there are two versions you can choose from, which is the low level and the high level.

  1.



Please check the system clearly for your car and select it from our shop menu.

The installation process is similar to our other screens, that is plug and play,
no need to cut the wires, no coding, or other operations.

Let's get started!

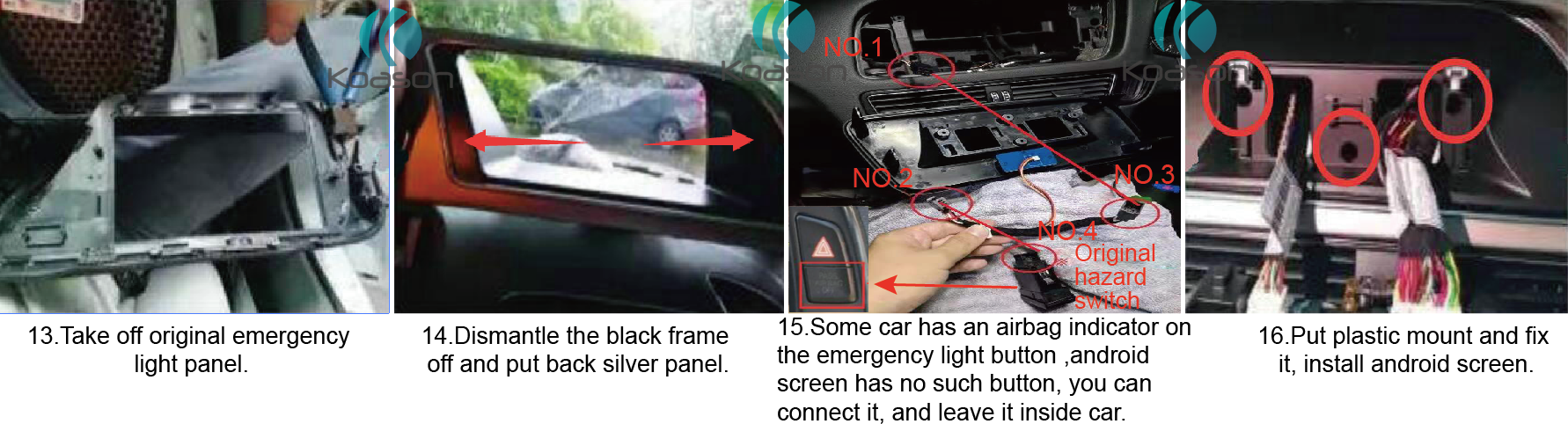

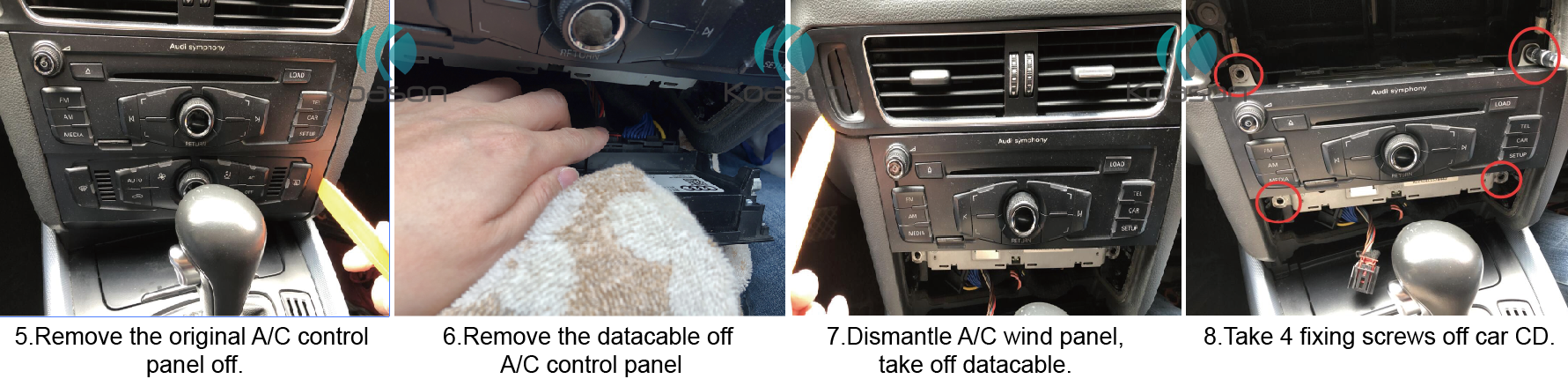

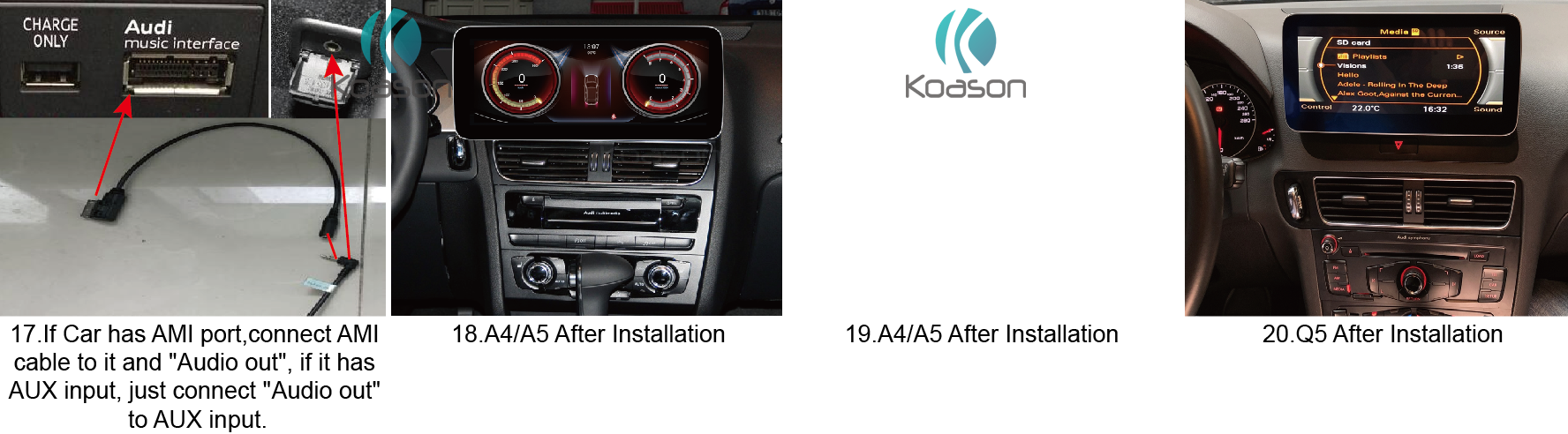

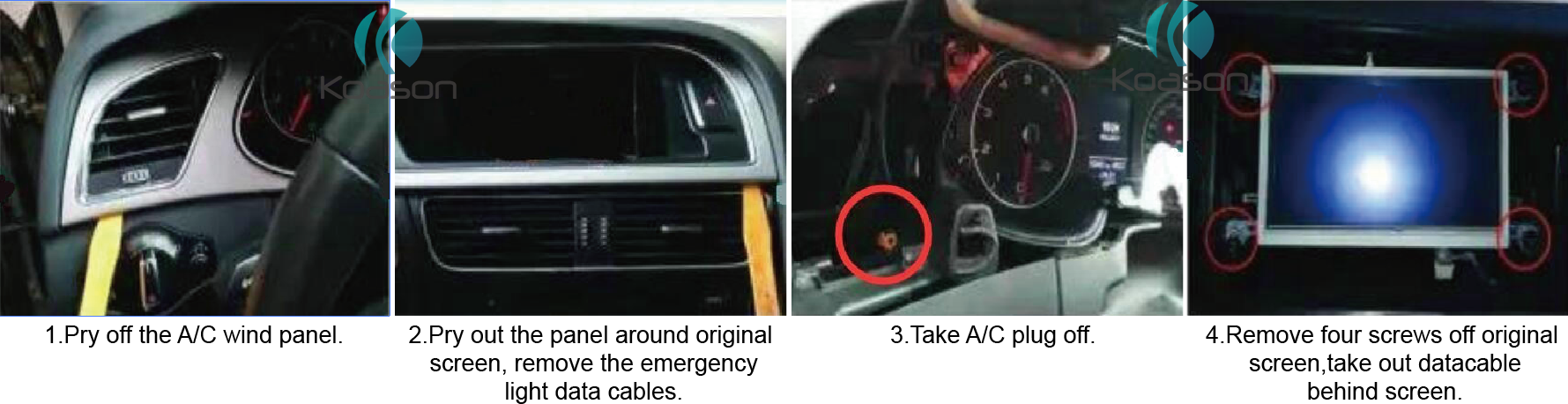

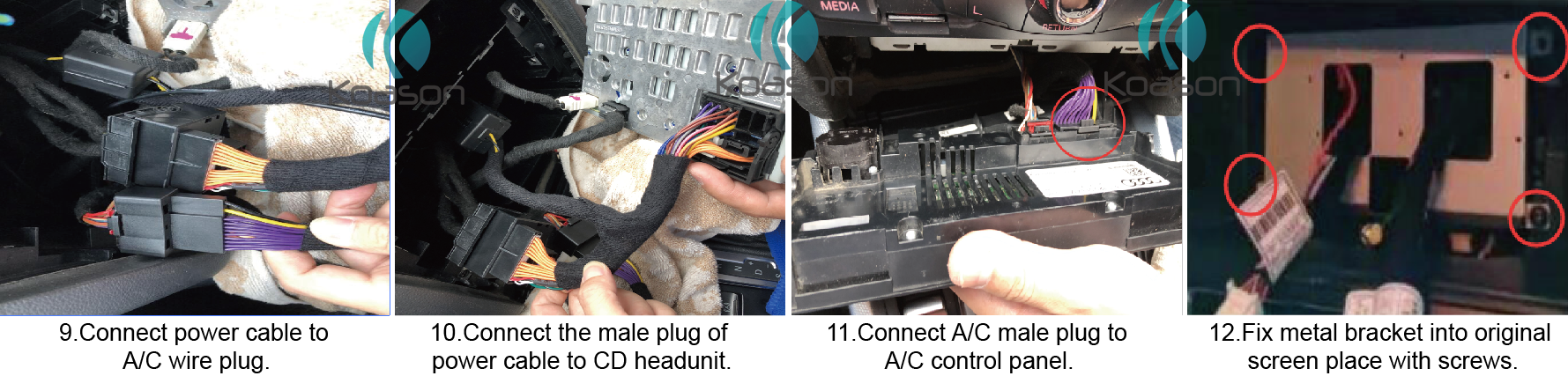

Installation - Low Version























Attention:

Need to connect all wirings first, then power on, or else it will show warning or error on dashboards.

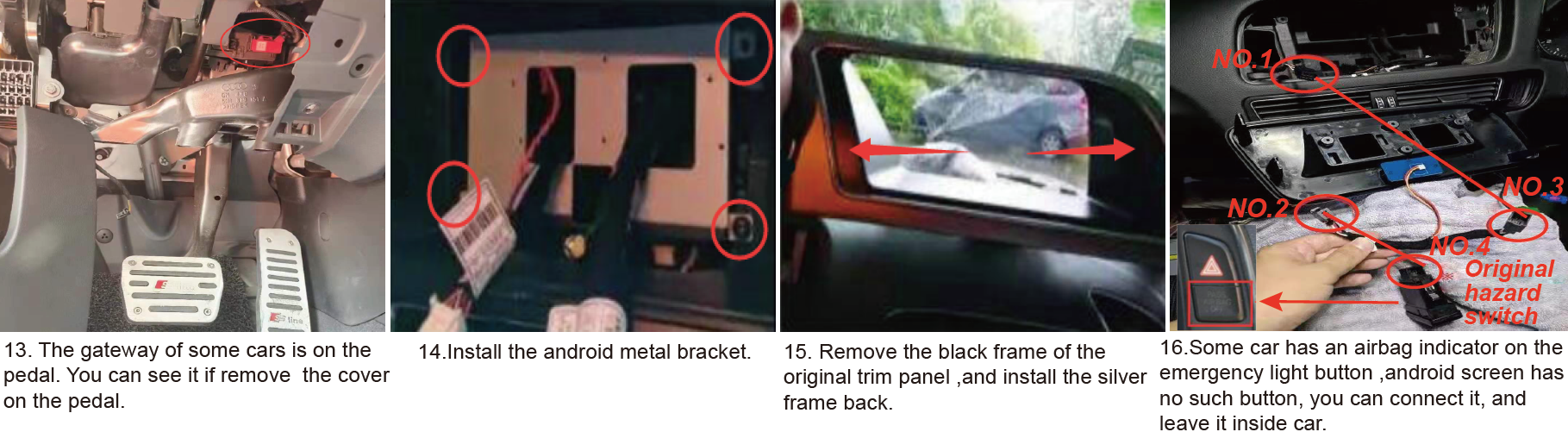

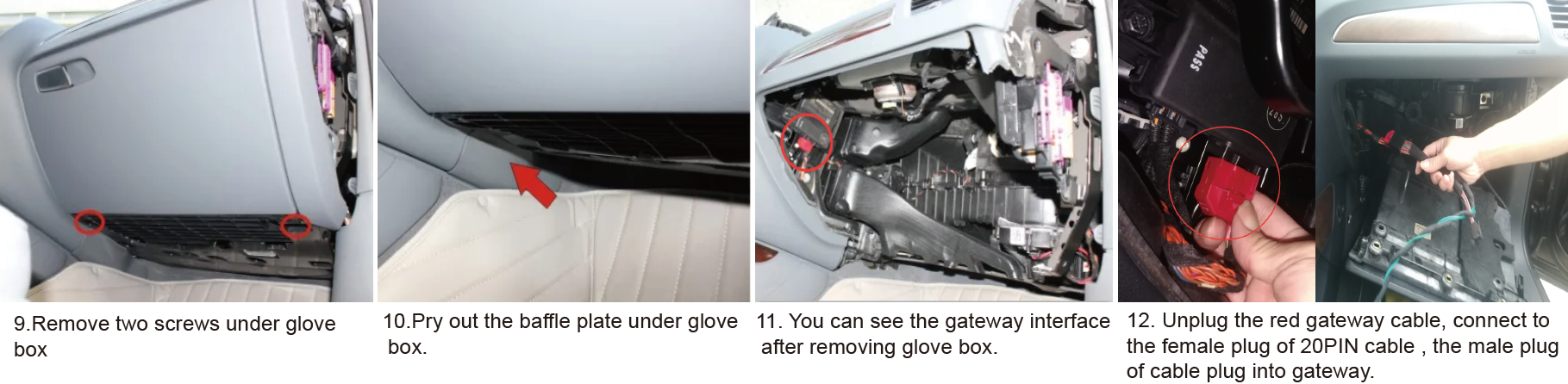

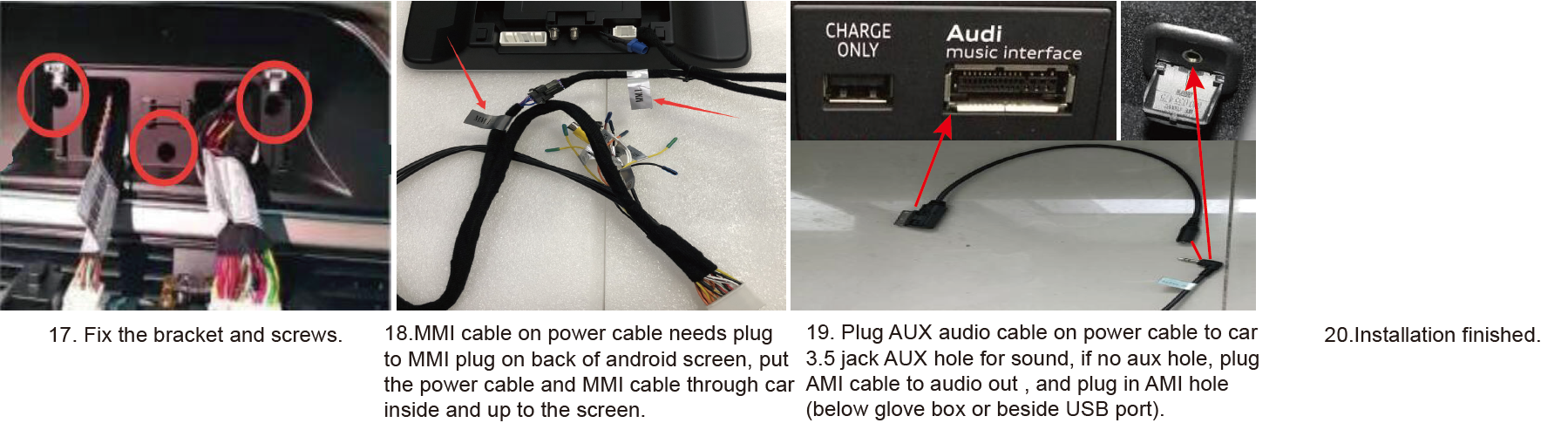

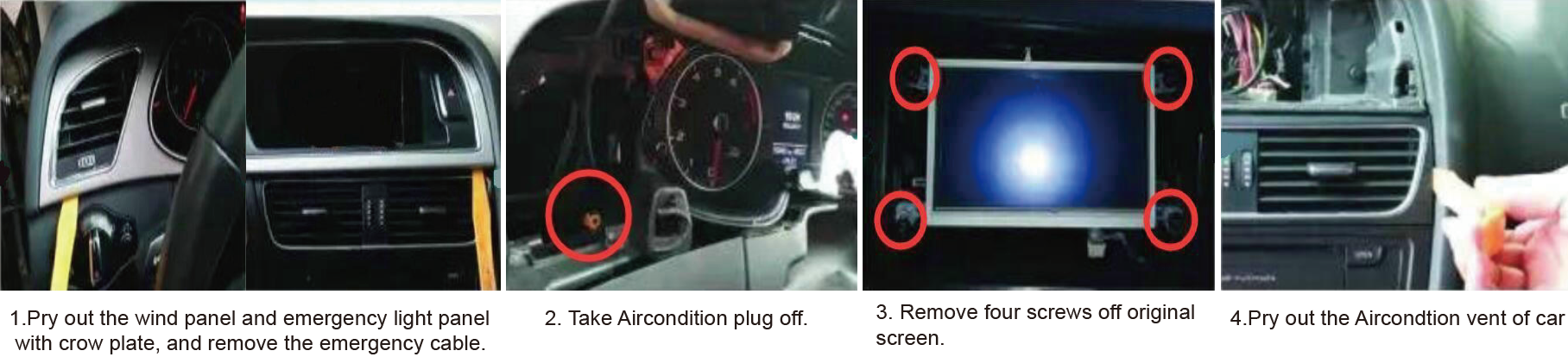

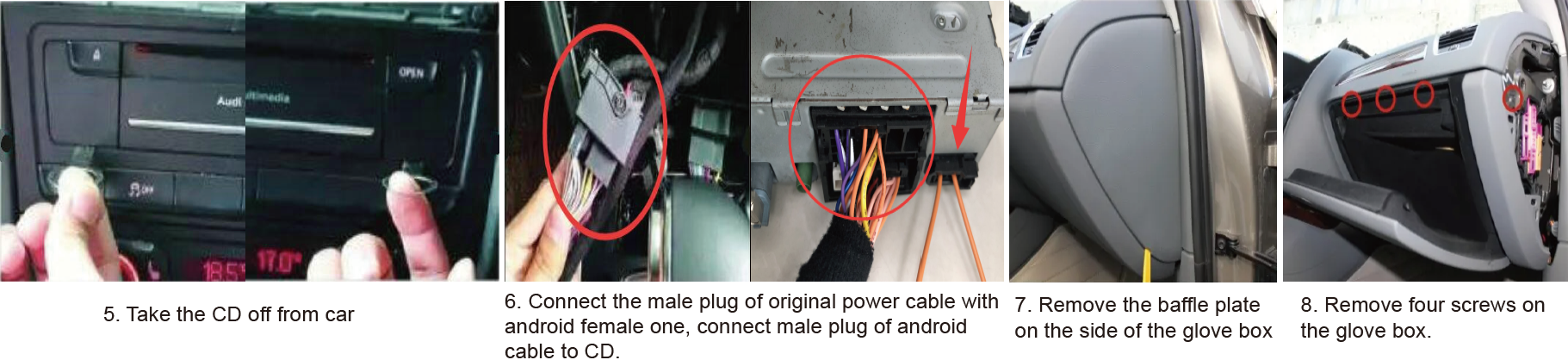

Installation - High Version
